Embedded Overhead Hoists

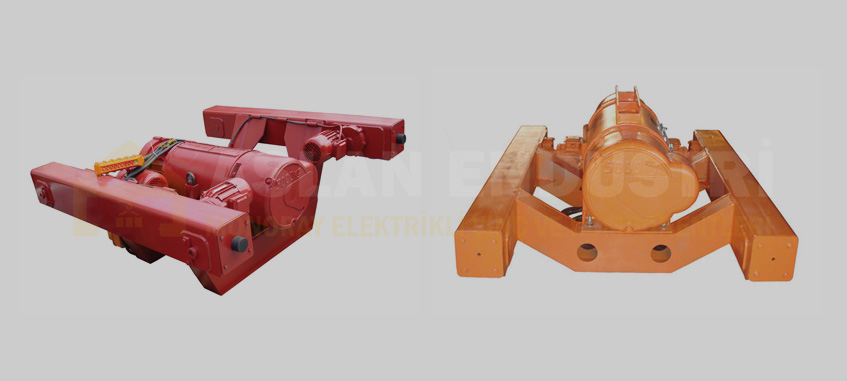

We are selling electric rope hoist with 1-5 ton lifting capacity, lifting height of 9-30 meters, used as lifting unit in double girder bridge and gantry cranes. Crane hooks, hoist trolley and electrical panel are included in our embedded overhead hoists.
| Model | 1 TON | 2 TON | 3 TON | 5 TON | |
|---|---|---|---|---|---|
| LIFTING CAPACITY (ton) | 1 | 2 | 3 | 5 | |
| ROPE THICKNESS (mm) | 8 | 10 | 12 | 14 | |
| LIFTING HEIGHT (m) | 9-30 | ||||
| LIFTING SPEED MODE | Double Speed /Single Speed | ||||
| LIFTING SPEED (m/min) | 8 / 0.8 | 8 / 0.8 | 8 / 0.8 | 8 / 0.8 | |
| TRAVELING SPEED (m/min) | 20 | 20 | 20 | 20 | |
| LIFTING UNIT |
POWER (kW) | 1.5 | 3.0 | 4.5 | 7.5 |
| ROTATION SPEED (r/min) | 1380 | 1380 | 1380 | 1380 | |
| PHASE | 3 | 3 | 3 | 3 | |
| VOLTAGE (V) | 380 | 380 | 380 | 380 | |
| FREQUENCY (Hz/s) | 50 | 50 | 50 | 50 | |
| TRAVELING UNIT |
POWER (kW) | 0.2 | 0.4 | 0.4 | 0.8 |
| ROTATION SPEED (r/min) | 1380 | 1380 | 1380 | 1380 | |
| PHASE | 3 | 3 | 3 | 3 | |
| VOLTAGE (V) | 380 | 380 | 380 | 380 | |
| FREQUENCY (Hz/s) | 50 | 50 | 50 | 50 | |
| HOOK BLOCK | 2/1 | 2/1 | 2/1 | 2/1 | |
| CONTROL TYPE | Pendant / Remote Controller (optional) | ||||
