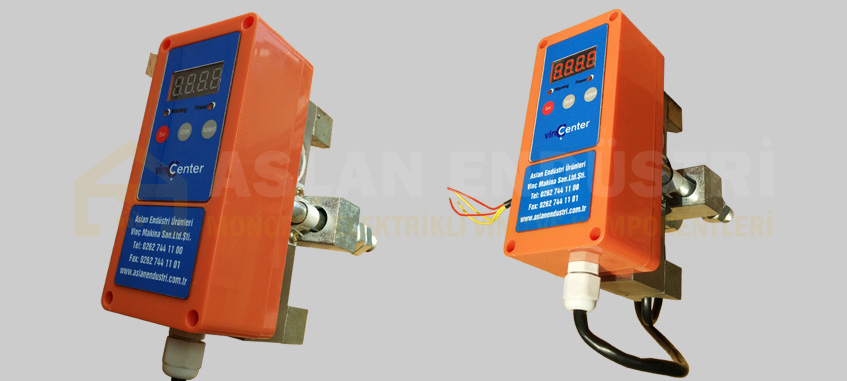

Hoist Load Limit Switch
Call us for your needs of hoist load limit switch.
| Model | LS 1 | LS 2 | LS 3 | LS 4 | LS 5 | LS 6 |
|---|---|---|---|---|---|---|
| CAPACITY (ton) | 1/2 | 3/5 | 5/10 | 10/20 | 32 | 50 |
| ROPE THICKNESS (Ø mm) | 6-12 | 10-14 | 12-18 | 16-26 | 24-36 | 24-36 |
| ACCURACY | ≤ 5%F.S. | |||||
| WARNING | 90% prewarning, 105% alarm, 130% immediate action | |||||
| CONTACT CAPACITY | 10A/250V | |||||
| POWER NETWORK VOLTAGE | AC380V, 50Hz | |||||
| WORKING TEMPERATURE | -20~65°C/90%RH | |||||
| VOLTAGE (V) | 380 | |||||
| FREQUENCY (Hz) | 50 | |||||
