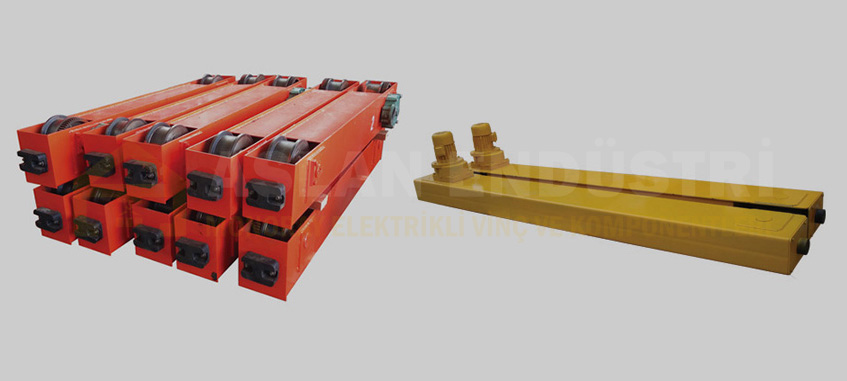

Crane End-Trucks
Call us for your needs of crane end-trucks.
| Model | Crane (ton) | Power (kW) | Span (m) | Traveling Speed (m/min) |
Dimensions (mm) (W*H*Thickness) |
Length (mm) |
Wheel Diameter (mm) |
|---|---|---|---|---|---|---|---|
| ET1 | 1 | 0.2 | 5.5-16.5 | 20 | 150x150x6 | 2000-2500 | 120 |
| ET2 | 2 | 0.4 | 5.5-16.5 | 20 | 150x250x6 | 2000-3000 | 174 |
| ET3 | 3 | 0.4 | 5.5-22.5 | 20 | 150x250x6 | 2000-3000 | 174 |
| ET5 | 5 | 0.8 | 5.5-22.5 | 20 | 200x250x6 | 2000-3000 | 198 |
| ET10 | 10 | 2x0.8 | 5.5-22.5 | 20 | 200x300x6 | 2000-3500 | 240 |
| ET16 | 16 | 2x0.8 | 5.5-22.5 | 20 | 200x300x8 | 2500-3000 | 268 |
| ET20 | 20 | 2x0.8 | 5.5-22.5 | 20 | 200x350x8 | 2500-3000 | 268 |
| ET32 | 32 | 2x0.8 | 5.5-22.5 | 20 | 200x350x8 | 2500-3000 | 268 |
| ET50 | 50 | 2x3 | 5.5-22.5 | 10 | 200x350x8 | 2500-3000 | 268 |
