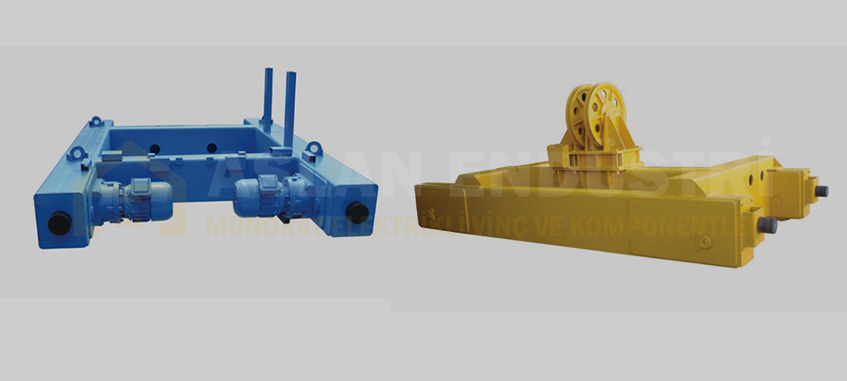

Crane Travelling Trolleys
Call us for your crane travelling trolley needs.
| Model | LIFTING CAPACITY (ton) |
POWER (kW) |
TRAVELLING SPEED (m/min) |
RAIL TYPE (kg) |
WHEEL DIAMETER (mm) |
RAIL SPAN (mm) |
|---|---|---|---|---|---|---|
| HT1 | 1 | 0.2 | 20 | 12 | 125 | 750-1200 |
| HT2 | 2 | 0.4 | 20 | 12 | 125 | 750-1200 |
| HT3 | 3 | 0.4 | 20 | 12 | 145 | 800-1200 |
| HT5 | 5 | 0.8 | 20 | 15 | 175 | 950-1400 |
| HT10 | 10 | 2x0.8 | 20 | 22 | 195 | 1200-1500 |
| HT16 | 16 | 2x0.8 | 20 | 22 | 215 | 1400-1800 |
| HT20 | 20 | 2x0.8 | 20 | 24 | 245 | 1600-2000 |
| HT32 | 32 | 2x0.8 | 20 | 30 | 295 | 1600-2000 |
| HT50 | 50 | 2x3 | 10 | 30 | 295 | 1600-2000 |
