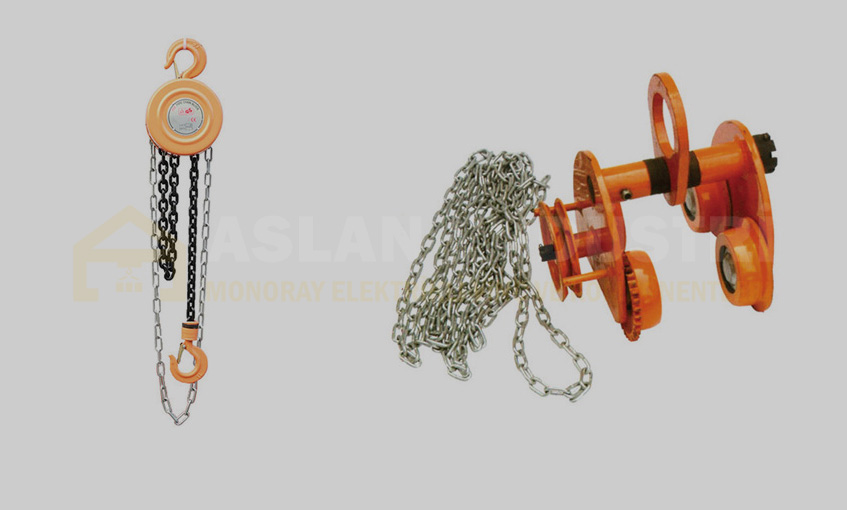

Manual Chain Hoists
We sell manual chain hoist with 0.5-10 ton lifting capacity.
| Model | 0.5 TON | 1 TON | 2 TON | 3 TON | 5 TON | 10 TON |
|---|---|---|---|---|---|---|
| LIFTING CAPACITY (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 |
| LIFTING HEIGHT (m) | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 |
| RATED LOAD (ton) | 0.75 | 1.5 | 3.0 | 4.5 | 6.25 | 12.5 |
| CLOSED HEIGHT (mm) | 271 | 400 | 420 | 620 | 704 | 720 |
| MAX POWER (N) | 221 | 304 | 314 | 343 | 382 | 392 |
| NUMBER OF CHAIN | 1 | 1 | 2 | 2 | 2 | 4 |
| CHAIN THICKNESS (mm) | 6 | 6 | 6 | 8 | 10 | 10 |
| WEIGHT (kg) | 9 | 11 | 15 | 24 | 39 | 72 |
