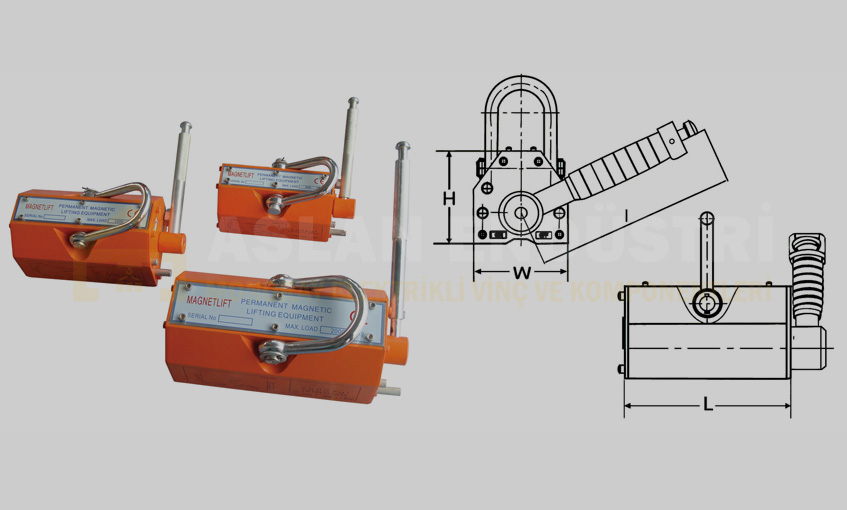

Permanent Magnetic Lifters
We are selling the permanent magnetic lifters with 100kg-6000kg lifting capacity, used as lifting equipment for metal plate, block, profile lifting and transportation, part holding during assembly, pressing and transportation of press dies, lifting and transporting semi-finished machine parts, lifting and transportation of iron plate and blocks in ship and building construction industry.
| Model | Flat Surface Lifting Capacity (Kg) |
Round Surface Lifting Capacity (Kg) |
Max Break Point (Kg) |
Dimensions (mm) | Net Weight (Kg) |
Working Temperature (Kg) |
|||
|---|---|---|---|---|---|---|---|---|---|
| H | L | W | I | ||||||
| KM 100 | 100 | 50 | 300 | 67 | 91 | 62 | 140 | 3 | -40ºC/+100ºC |
| KM 400 | 400 | 200 | 1200 | 92 | 158 | 95 | 160 | 9.2 | -40ºC/+100ºC |
| KM 600 | 600 | 300 | 1800 | 115 | 210 | 120 | 220 | 20 | -40ºC/+100ºC |
| KM 1000 | 1000 | 500 | 3000 | 135 | 256 | 153 | 250 | 36 | -40ºC/+100ºC |
| KM 2000 | 2000 | 1000 | 5000 | 165 | 344 | 172 | 350 | 68 | -40ºC/+100ºC |
| KM 3000 | 3000 | 1500 | 7500 | 165 | 434 | 175 | 350 | 92 | -40ºC/+100ºC |
| KM 5000 | 5000 | 2500 | 12500 | 215 | 512 | 230 | 680 | 198 | -40ºC/+100ºC |
| KM 6000 | 6000 | 3000 | 15000 | 215 | 722 | 230 | 720 | 218 | -40ºC/+100ºC |
