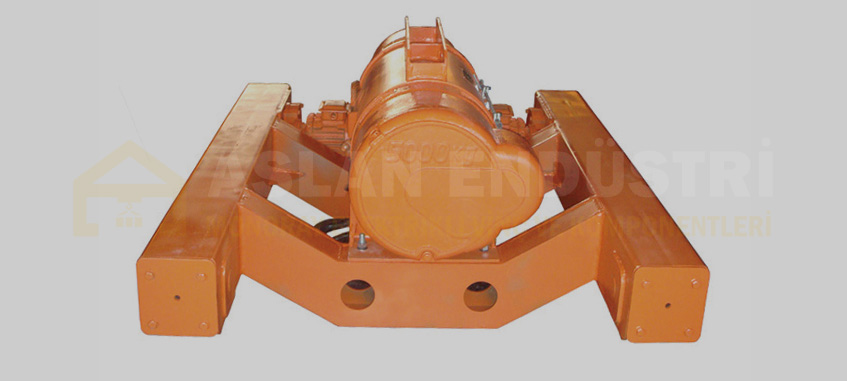

5 Tons Embedded Overhead Hoist
We are selling electric rope hoist with lifting capacity of 5 tons, lifting height of 9-30 meters, used as lifting unit in double girder overhead bridge cranes and gantry cranes. Crane hooks, hoist trolley and electrical panel are included in our embedded overhead hoists.
Technical Specifications
| Model | 5 TON | |
|---|---|---|
| LIFTING CAPACITY (ton) | 5 | |
| ROPE THICKNESS (mm) | 14 | |
| LIFTING HEIGHT (m) | 9-30 | |
| LIFTING SPEED MODE | Double Speed / Single Speed | |
| LIFTING SPEED (m/min) | 8 / 0.8 | |
| TRAVELING SPEED (m/min) | 20 | |
| LIFTING UNIT |
POWER (kW) | 7.5 |
| ROTATION SPEED (r/min) | 1380 | |
| PHASE | 3 | |
| VOLTAGE (V) | 380 | |
| FREQUENCY (Hz/s) | 50 | |
| TRAVELING UNIT |
POWER (kW) | 0.8 |
| ROTATION SPEED (r/min) | 1380 | |
| PHASE | 3 | |
| VOLTAGE (V) | 380 | |
| FREQUENCY (Hz/s) | 50 | |
| HOOK BLOCK | 2/1 | |
| CONTROL TYPE | Pendant / Remote Controller (optional) | |
How to Order
For ordering, first determine whether you need normal and slow double speed according to the material you will lift and carry. Our sales team will offer you the most suitable 5 tons embedded overhead hoist price.
