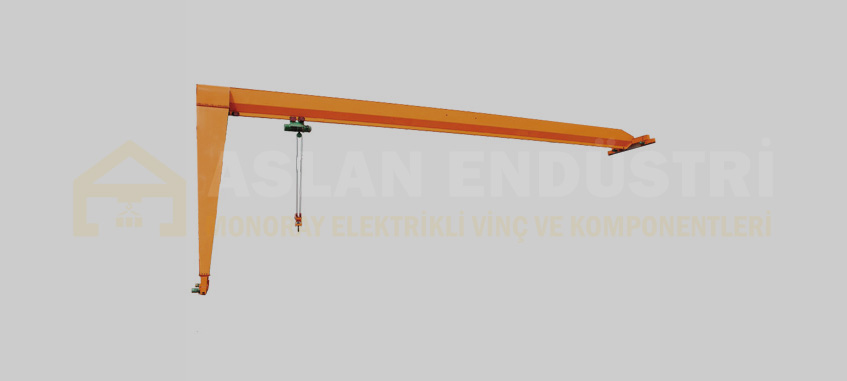

Single Girder Semi-Gantry Crane Manufacturing and Installation
Lifting unit of single girder semi-gantry crane moves forward and backward on the main beam and carries out material lifting and transportation operations and operates in two different speed modes. Generally, the used speed mode is normal speed mode and is suitable for many applications. It also works in slow mode for precise lifting and handling. Single Girder Semi-Gantry Cranes; It is widely used in mechanical production workshops, product assembly line and warehouses. Control can be done by manual control or remote control.
Technical Specifications
| LIFTING CAPACITY (ton) | 1 | 2 | 3 | 5 | 10 | 16 | 20 | 32 |
|---|---|---|---|---|---|---|---|---|
| LIFTING HEIGHT (m) | 3-9 | |||||||
| LIFTING SPEED (m/min) | 8 / 0.8 | |||||||
| TRAVELING SPEED (m/min) | 20 | |||||||
| POWER SUPPLY | 380 V, 3 PHASE, 50 Hz | |||||||
| CONTROL TYPE | Manual / Remote Controller | |||||||
How to Order
Specify your lifting capacity and lifting height requirement for the order first. Determine whether you need normal and slow double speed according to the material you will lift and transport. Call us after determining the height of the halls where single girder semi-gantry crane will work. Our expert team will recommend the most suitable single girder semi-gantry crane system for you.
