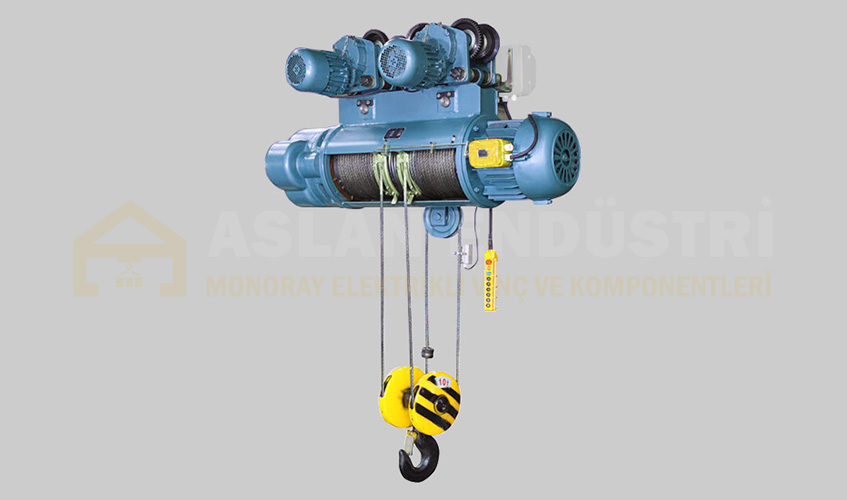

10 Tons Monorail Electric Hoist
We are selling electric rope hoist which is used as lifting unit in monorail cranes, overhead cranes and gantry cranes with lifting capacity of 10 tons, lifting height of 9-30 meters. Hoists include hoist hook, hoist trolley and electric panel.
Technical Specifications
| Model | 10 TON | |
|---|---|---|
| LIFTING CAPACITY (ton) | 10 | |
| ROPE THICKNESS (mm) | 14 | |
| LIFTING HEIGHT (m) | 12-24 | |
| LIFTING SPEED MODE | Double Speed / Single Speed | |
| LIFTING SPEED (m/min) | 8 / 0.8 | |
| TRAVELING SPEED (m/min) | 20 | |
| LIFTING UNIT |
POWER (kW) | 13 |
| ROTATION SPEED (r/min) | 930 | |
| PHASE | 3 | |
| VOLTAGE (V) | 380 | |
| FREQUENCY (Hz/s) | 50 | |
| TRAVELING UNIT |
POWER (kW) | 2x0.8 |
| ROTATION SPEED (r/min) | 1380 | |
| PHASE | 3 | |
| VOLTAGE (V) | 380 | |
| FREQUENCY (Hz/s) | 50 | |
| HOOK BLOCK | Çift 4/2 | |
| CONTROL TYPE | Pendant / Remote Controller (optional) | |
How to Order
For ordering, first determine whether you need normal and slow double speed according to the material you will lift and carry. Our sales team will offer you the most suitable 10-ton electric hoist price.
