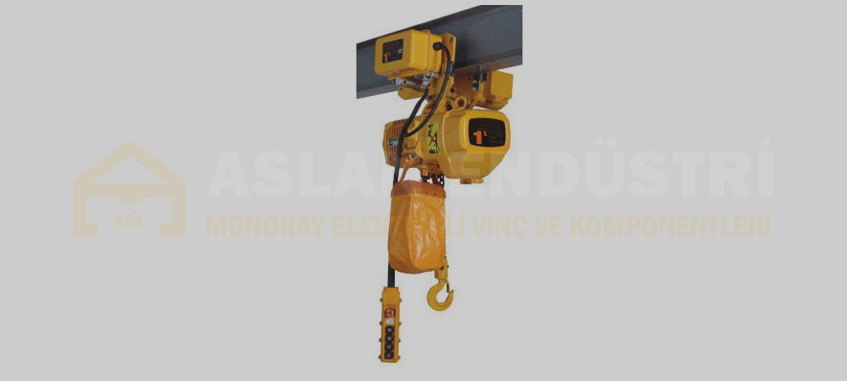

1 Ton Electric Chain Hoist
We are selling electric chain hoist with lifting capacity of 1 ton, lifting height of 3-9 meters, used as lifting unit in monorail, traveling overhead cranes and gantry cranes. Hoist hook, hoist trolley and electric panel are included in our chain hoists.
Technical Specifications
| Model | 1 TON | |
|---|---|---|
| LIFTING CAPACITY (ton) | 1 | |
| LIFTING HEIGHT (m) | 3 / 9 | |
| LIFTING SPEED (m/min) | 6.8 | |
| LIFTING UNIT |
POWER (kW) | 1.5 |
| ROTATION SPEED (r/min) | 1440 | |
| PHASE | 3 | |
| VOLTAGE (V) | 380 | |
| FREQUENCY (Hz/s) | 50 | |
| TRAVELING UNIT |
POWER (kW) | 0.4 |
| ROTATION SPEED (r/min) | 1440 | |
| TRAVELING SPEED (m/min) | 10/20 | |
| PHASE | 3 | |
| VOLTAGE (V) | 380 | |
| CHAIN TYPE | Single | |
| HOOK BLOCK | Single Roller | |
How to Order
For ordering, first determine whether you need normal or slow double speed according to the material you will lift or carry. Our sales team will offer you the most suitable 1 ton electric chain hoist price.
